Femoral component

  • Femoral Component : CoCrMo Alloy (NF ISO 5832-4)
  • Tibial Insert : Ultra High Molecular Weight Polyethylene (UHMWPE) (NF ISO 5834-2)
  • Tibial Baseplate : Titanium alloy TiAl6V4 (NF ISO 5832-3)
  • Tibial and Femoral Extension : Titanium alloy TiAl6V4 (NF ISO 5832-3)
  • Femoral augments : Titanium alloy TiAl6V4 (NF ISO 5832-3)

Material

Geometry

  • Cylindrical and centered postero-stabilization peg
  • Rotating motion
  • Unconstrained patellofemoral compartment
  • Distal and posterior femoral augments
  • Conical femoral extension
  • Internal and/or external tibial augments with tibial insert
  • Multidirectional excentration of the tibial keel
  • 6 tibial inserts thicknesses available (from 7 to 17mm)
  • Compatibility with HiFit PS 1st intention
  • Only 2 instrumentation trays complementary to the 4 HiFit PS trays

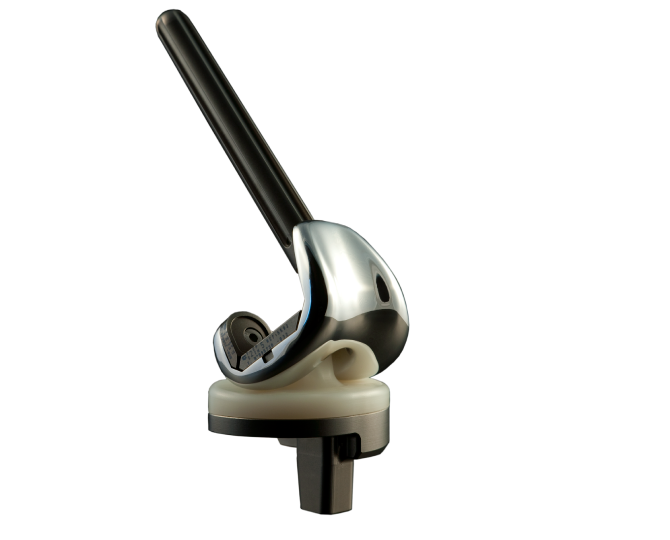

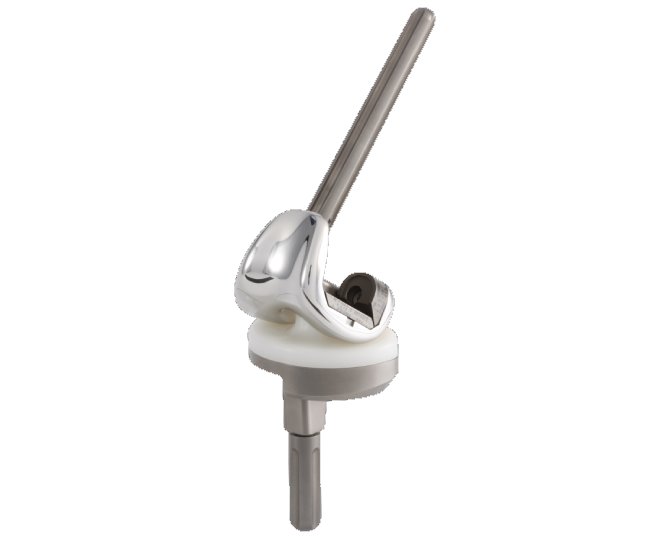

Knee - Revision HERMES - Ceraver

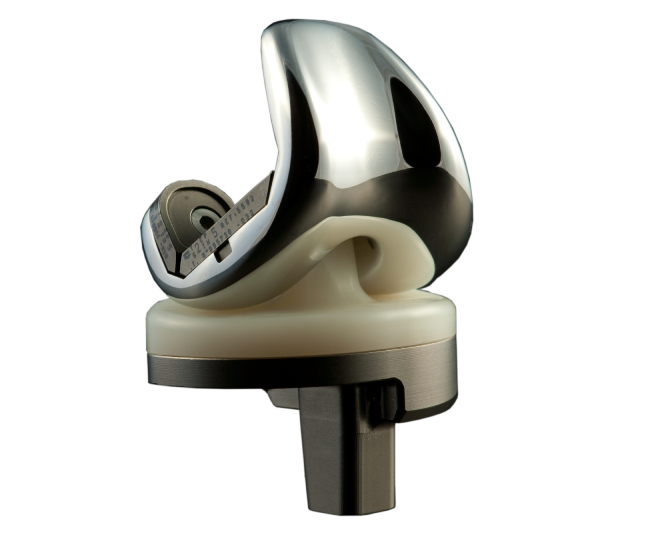

FEMORAL COMPONENT

Size 1* 2 3 4
Reference Right 5801 5802 5803 5804
Left 5701 5702 5703 5704
Knee - Revision HERMES - Ceraver

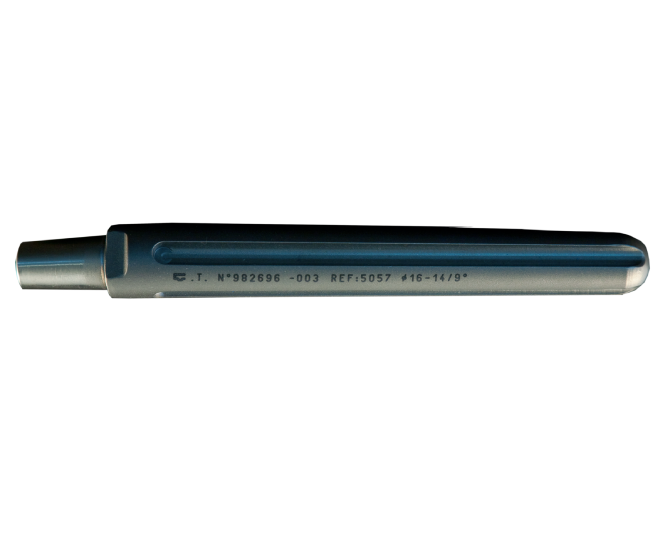

FEMORAL EXTENSION

Angle / Ø (mm) Ø 10 – 8 Ø 12 – 10 Ø 14 – 12 Ø 16 – 14 Ø 18 – 16 Ø 20 – 18
5034 5035 5036 5037 5038 5039
5044 5045 5046 5047 5048 5049

FEMORAL AUGMENTS



Distal filler augment Posterior filler augment
Cale_distale_blanc_revision Cale_posterieure_blanc_revision
Size Thickness Left Lateral
Left Medial
Right Medial
Right Lateral
Left Lateral/Right Medial
Left Medial/Right Lateral
1 5 mm 5571 5561 5581 5591 5551 5541
10 mm 5671 5661 5681 5691 5651 5641
2 5 mm 5572 5562 5582 5592 5552 5542
10 mm 5672 5662 5682 5692 5652 5642
3 5 mm 5573 5563 5583 5593 5553 5543
10 mm 5673 5663 5683 5693 5653 5643
4 5 mm 5574 5564 5584 5594 5554 5544
10 mm 5674 5664 5684 5694 5654 5644



Knee - Revision HERMES - Ceraver

TIBIAL INSERT

Thickness 1 2 3 4
Small Peg 17 mm 7 mm 1196 1202 1345
9 mm 1197 1203 1346
11 mm 1198 1204 1347
13 mm 1199 1205 1348
15 mm 1200 1206 1384
17 mm 4921 4922 4927
Large Peg 22 mm 7 mm 1344 1208 1214
9 mm 1341 1209 1215
11 mm 1342 1210 1216
13 mm 1343 1211 1217
15 mm 1338 1212 1218
17 mm 4926 4923 4924
Knee - Revision HERMES Tibial Baseplate - Ceraver

TIBIAL BASEPLATE

Picture Description Thickness Size 1 Size 2 Size 3 Size 4
Embase T1 hermes revision Monoblock Augment
Total
10mm 5241 5241 5243 5244
Embase T2 hermes revision Monoblock Augment
Left Medial
Right Lateral
10mm 5341 5342 5343 5344
Embase T3 hermes revision Monoblock Augment
Left Lateral
Right Medial
10mm 5441 5442 5443 5444
Knee - Revision HERMES - Ceraver

TIBIAL OFFBEAT

OFFSET (mm) 0 3 6 9
References 5806 5807 5808 5809
Knee - Fixed-Bearing Poster-stabilized HIFIT - Ceraver

TIBIAL EXTENSION

Ø (mm) Ø 10 Ø 11 Ø 12 Ø 13 Ø 14 Ø 15 Ø 16 Ø 17 Ø 18 Ø 19
References 5080 5081 5082 5083 5084 5085 5086 5087 5088 5089
Knee - Revision HERMES Tibial Insert - Ceraver

PATELLAR COMPONENT

Ø (mm) 31 34 36 39
Thickness 8 mm 9 mm 10 mm 11 mm
References 5090 5091 5092 5093
