HIP - CUP
CERAFIT DUAL MOBILITY CUP
Design, production and commercialization of
high-tech orthopedic products
Our products are not available in every country Please contact us
PRODUCT INFORMATION

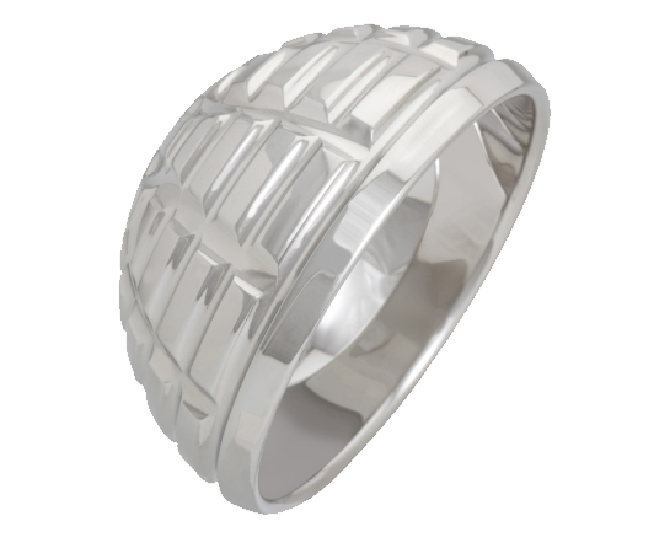

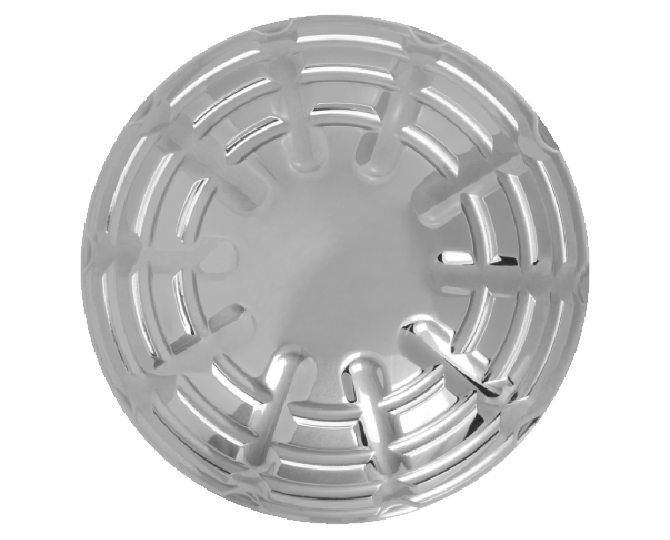

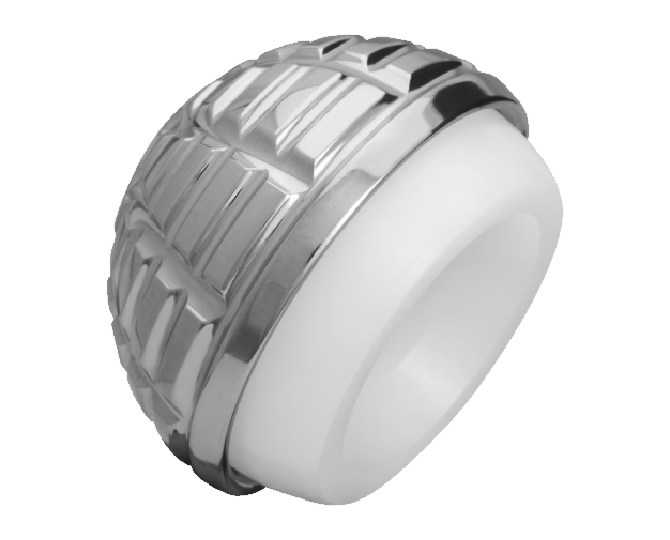

CEMENTED CUP
Material
- Stainless steeal (NF ISO 5832-9)
- Shiny polished surface
Shape
- Half sphere
- No sharp edges, limiting rupture sites at the implant/cement interface

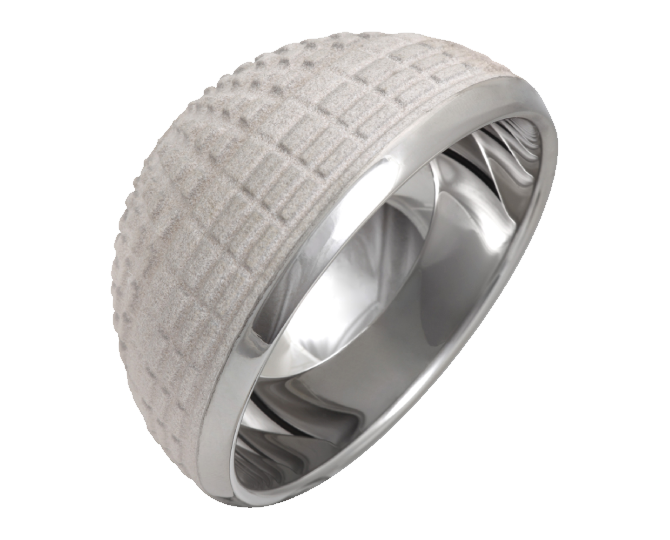

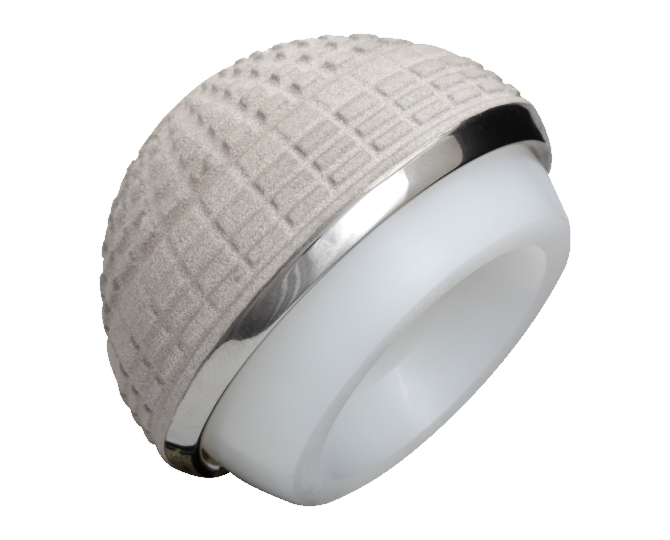

CEMENTLESS CUP
Material
- Stainless steeal (NF ISO 5832-9)
- Rough coating (2µm Ra)
- Hydroxyapatite coating (HAC) (NF ISO 13799-2 ; 3 ; 4)
Shape
- « Triradius » Concept using since 1989 on CERAFIT Cup
- Median area : nominal acetabulum radius
- Equator : 1 mm peripheral build-up (equatorial press-fit)
- Pole : slight flattening
- No hole, limiting polyethylene liner wear
Combined with
- Requires polyethylene dual mobility liner
- 28mm femoral heads

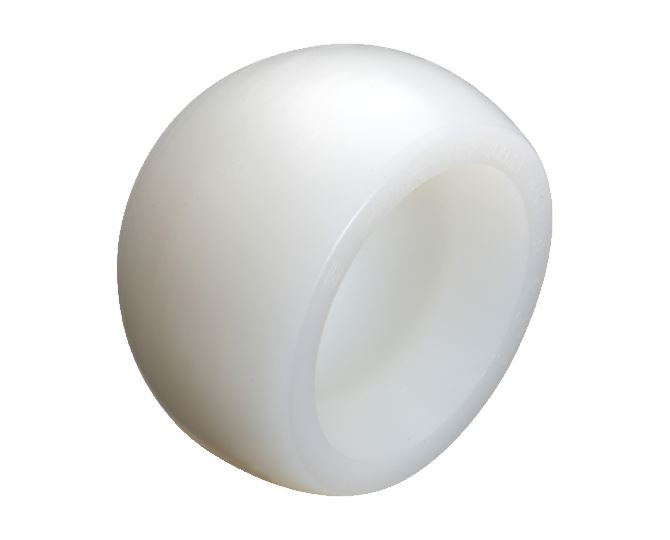

DUAL MOBILITY PE LINER
Material
- Ultra High Molecular Weight Polyethylene (UHMWPE) (NF ISO 5834-2)
Shape
- Internal diameter of 28mm
CUPS AND LINER
| Ø CUP (mm) | HAC VERSION | CEMENTED VERSION | PE LINER |
|---|---|---|---|
| 46 | 12019 | 14046 | 10029 |
| 48 | 12020 | 14048 | 10030 |
| 50 | 12021 | 14050 | 10031 |
| 52 | 12022 | 14052 | 10032 |
| 54 | 12023 | 14054 | 10033 |
| 56 | 12024 | 14056 | 10034 |
| 58 | 12025 | 14058 | 10035 |
| 60 | 12026 | 14060 | 10036 |
| 62 | 12027 | 14062 | 10037 |
BROCHURES AND SURGICAL TECHNIQUES
INSTRUCTION FOR USE
CEMENTED DUAL MOBILITY CUP
UNCEMENTED DUAL MOBILITY CUP
PE DUAL MOBILITY LINER
For more specific documentation please register on the site to enjoy privileged access.
