HIP - FEMORAL STEM
LONG OSTEAL REVISION
Design, production and commercialization of
high-tech orthopedic products
Our products are not available in every country Please contact us
PRODUCT INFORMATION

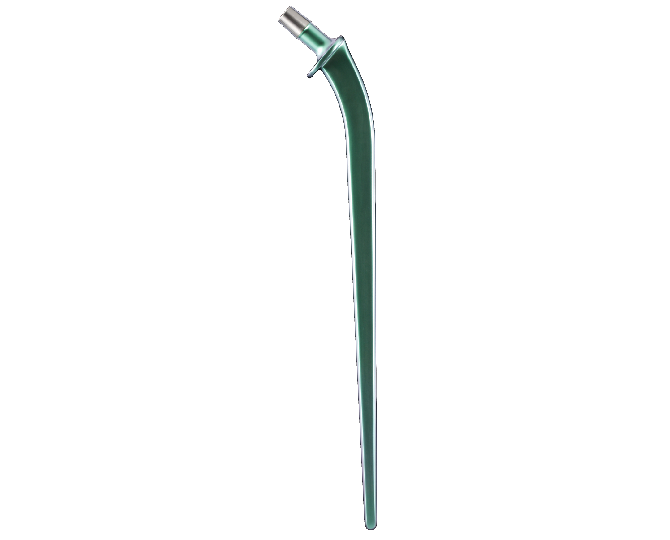

CEMENTED REVISION STEM
Material
- Titanium Alloy TiAl6V4 (NF ISO 5832-3)
- Polished surface (0,2 µm Ra) reinforced with a titanium oxide layer (TiO2)
Shape
- 132° cervico-diaphyseal angle
- Medial curve, adapted to different morphologies to avoid post-operative varisation
- Broad collar antero-posterior and medial to avoid distal migration and to stabilize implant rotation
- Quadrangular section for rotation locking
- Micro-threaded cone allowing reduction of the stresses at the alumina-titanium surface
- Several lengths available, up to 300mm
- Pertrochanteric support stem : 170 and 190mm
Combined with
Every CERAVER stainless steel or alumina femoral heads
Stainless Steel Femoral Heads
Material
-
Stainless Steel (NF ISO 5832-9)
Shape
- 12/14 conical fitting
Combined with
Every cemented (OSTEAL) and cementless (CERAFIT) stem.
Alumina Femoral Heads
Material
-
Pure alumina ceramic (NF ISO 6474-1)
Shape
- 12/14 conical fitting
Combined with
Every cemented (OSTEAL) and cementless (CERAFIT) stem.
STEMS WITH PERTROCHANTERIC SUPPORT
| Sizes | References |
|---|---|
| RP 170 | 2812* |
| RP 190 | 2212* |
REVISION STEMS
| Sizes | References |
|---|---|
| DND 200 | 10004* |
| DND 250 | 10005* |
| LAR 0 200 | 10007* |
| LAR 0 250 | 10008* |
| LAR 0 300 | 10009* |
STAINLESS STEEL HEAD
| Ø (mm) | Description | References |
|---|---|---|
| 32 | Extra long neck +8 | 2263 |
| 32* | Extra long neck +12 | 2264 |
| 28 | Long neck +3,5 | 2223 |
| 28 | Medium neck 0 | 2224 |
| 28 | Long neck +3,5 | 2225 |
| 28 | Extra long neck +8 | 2261 |
| 28 | Extra long neck +12 | 2262 |
| 22,2 | Short neck -3,5 | 2217 |
| 22,2 | Medium neck 0 | 2218 |
| 22,2 | Long neck +3,5 | 2219 |
ALUMINA FEMORAL HEAD
| Ø (mm) | Description | References |
|---|---|---|
| 28 | Short neck -3,5 | 2000 |
| 28 | Medium neck 0 | 2001 |
| 28 | Long neck +3,5 | 2002 |
| 32 | Short neck -4 | 2003 |
| 32 | Medium neck 0 | 2004 |
| 32 | Long neck +4 | 2005 |
* Available on request
