HIP - FEMORAL STEM
OSTEAL – STANDARD Stem
Design, production and marketing of
high-tech orthopedic products
Our products are not available in every country Please contact us
PRODUCT INFORMATION

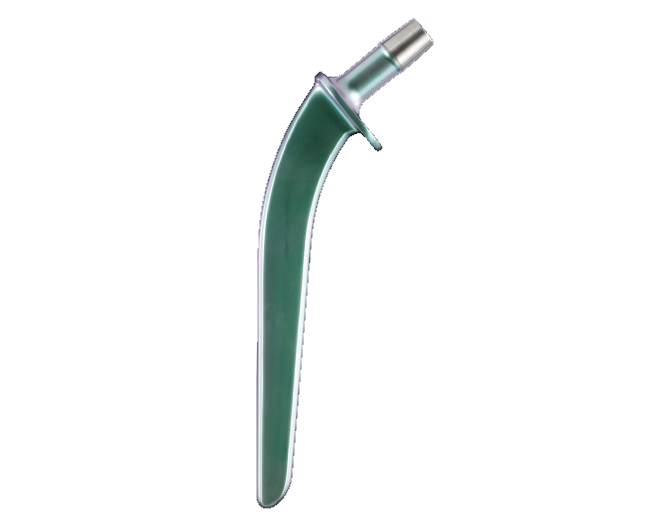

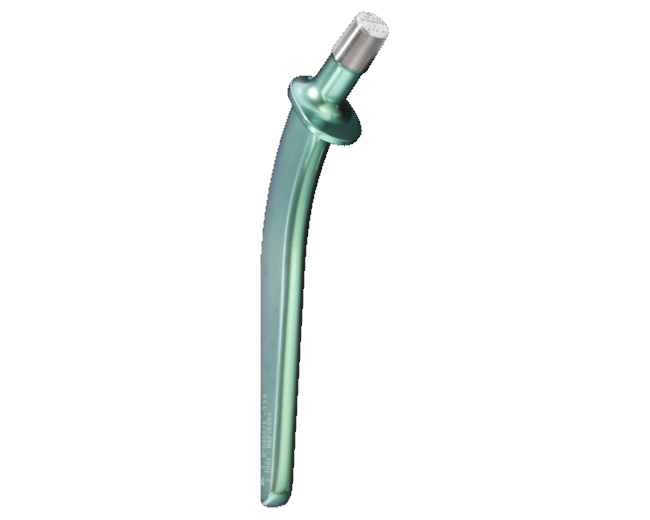

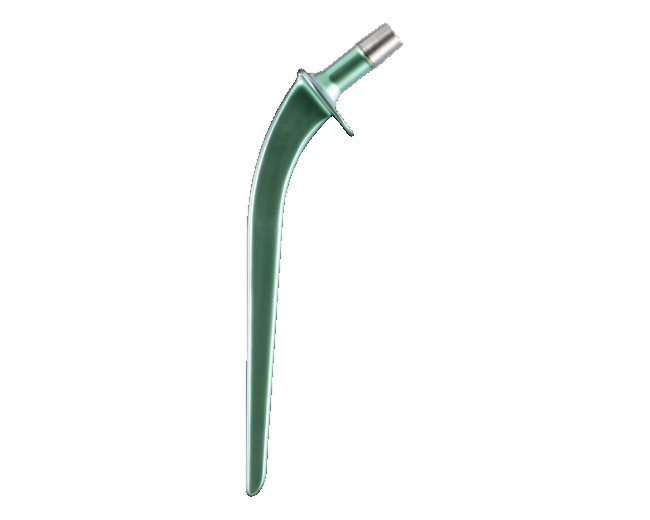

Cemented straigh stem
Material
- Titanium Alloy TiAl6V4 (NF ISO 5832-3)
- Polished surface (0,2 µm Ra) reinforced with a titanium oxide layer (TiO2)
Shape
- 132° cervico-diaphyseal angle
- Medial curve, adapted to different morphologies to avoid post-operative varisation
- Broad collar antero-posterior and medial to avoid distal migration and to stabilize implant rotation
- Quadrangular section for rotation locking
- Micro-threaded cone allowing reduction of the stresses at the alumina-titanium surface
Combined with
Every CERAVER stainless steel or alumina femoral heads
Stainless Steel Femoral Heads
Material
- Stainless Steel (NF ISO 5832-9)
Shape
- 12/14 conical fitting
Combined with
Every cemented (OSTEAL) and cementless (CERAFIT) stem.

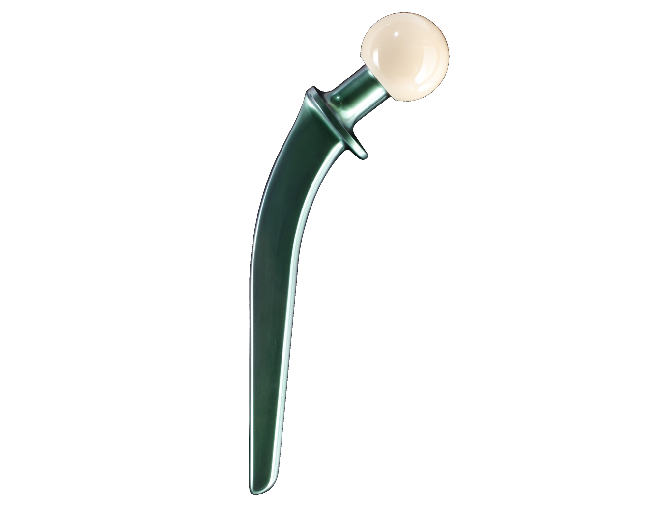

Alumina Femoral Head
Material
- Pure alumina ceramic (NF ISO 6474-1)
Shape
- 12/14 conical fitting
Combined with
Every cemented (OSTEAL) and cementless (CERAFIT) stem.
Standard Stem
| SIZES | REFERENCES |
|---|---|
| Size 0* | 4330 |
| 1 (DND) | 2203 |
| 2 (DN) | 2204 |
| 3 (LAR 0) | 2205 |
| 4 (LAR 1) | 2206 |
| 5 (QL)* | 2207 |
| 6 (LAR 2)* | 2208 |
Coxa Vara Stem
| Sizes | References |
|---|---|
| 01 (DTE) | 2201 |
| 02 (DE) | 2202 |
Dysplactic Femur Stem
| Size | References |
|---|---|
| DD | 2200 |
| D1* | 2209 |
| D2* | 2210 |
| D3* | 2211 |
Stainless Steel Femoral Head
| Ø (mm) | DESCRIPTION | REFERENCES |
|---|---|---|
| 32 | Extra long Neck +8 | 2263 |
| 32* | Extra long Neck +12 | 2264 |
| 28 | Short Neck -3,5 | 2223 |
| 28 | Medium Neck 0 | 2224 |
| 28 | Long Neck +3,5 | 2225 |
| 28 | Extra long Neck +8 | 2261 |
| 28 | Extra long Neck +12 | 2262 |
| 22,2 | Short Neck -3,5 | 2217 |
| 22,2 | Medium Neck 0 | 2218 |
| 22,2 | Long Neck +3,5 | 2219 |
Alumina Femoral Head
| Ø (mm) | DESCRIPTION | REFERENCES |
|---|---|---|
| 28 | Short Neck -3,5 | 2000 |
| 28 | Medium Neck 0 | 2001 |
| 28 | Long Neck +3,5 | 2002 |
| 32 | Short Neck -4 | 2003 |
| 32 | Medium Neck 0 | 2004 |
| 32 | Long Neck +4 | 2005 |
* Available on request
BROCHURES AND SURGICAL TECHNIQUES
Brochure
Surgical Technique
INSTRUCTION FOR USE
Cemented OSTEAL Stem (Standard and Revision version)
ALUMINA HEAD
STAINLESS STEEL HEAD
